Nucleic Acid Extraction Kit I (Magnetic Beads Method), BP-QN01, is a 100-reaction magnetic-bead kit for extraction, enrichment, and purification of nucleic acids before PCR detection. The workflow uses guanidine salt lysis, magnetic-bead adsorption, wash steps, and high-temperature elution, and supports manual extraction or compatible verified automated systems.

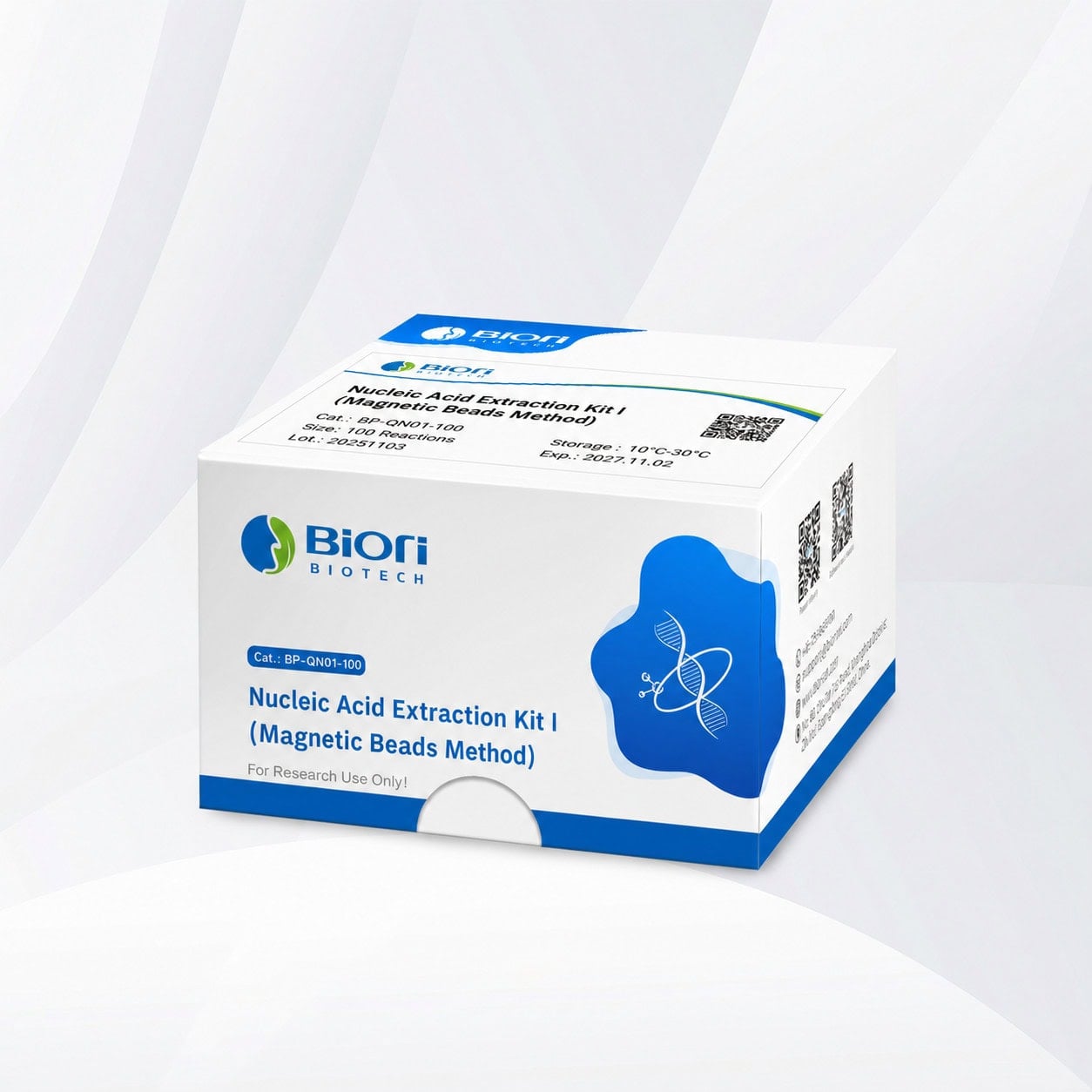

Nucleic Acid Extraction Kit I (Magnetic Beads Method), BP-QN01-100
USD
$0.00
BP-QN01-100
Features
- Magnetic bead-based workflow for nucleic acid extraction, enrichment, and purification from treated samples.
- Uses guanidine salt lysis and specific magnetic beads to adsorb nucleic acids, followed by wash and high-temperature elution steps.
- Supports both manual operation and automated extraction on Biori automatic nucleic acid extraction equipment or compatible verified systems.
- 100 reactions per kit, supplied with lysis buffer, wash buffer, elution buffer, Proteinase K, magnetic beads, and instructions.
- Automated on-machine extraction can be completed in approximately 10 minutes, with a maximum extracted sample volume of 400 μL.
Application
- Extraction, enrichment, and purification of nucleic acids for research-use PCR detection workflows.
- Sample preparation for cell suspension, cell supernatant, and treated biological product process samples.
- Nucleic acid purification workflows using manual magnetic separation or automated magnetic bead extraction equipment.
- Preparation of extracted products for downstream PCR-based analysis in research and bioprocess testing workflows.
Components
| No. | Component | Specification | Quantity |
|---|---|---|---|
| 1 | Lysis Buffer | 60 mL | 1 bottle |
| 2 | Wash Buffer | 100 mL | 1 bottle |
| 3 | Elution Buffer | 10 mL | 1 bottle |
| 4 | Proteinase K | 1 mL | 3 tubes |
| 5 | Magnetic Beads | 1 mL | 1 tube |
| 6 | Instructions | – | 1 copy |
Shipping and Storage
| Condition | Recommendation |
|---|---|
| Storage Temperature | Store at 10-30°C. Do not freeze and avoid strong light exposure. |
| Shelf Life | 24 months when stored under the specified conditions. The product lot number and expiration date are indicated on the outer package. |
| Shipping | Ship at ambient temperature under validated conditions; protect from freezing and strong light during transport. |
| Transport Information | Not classified as dangerous according to shipping regulations. |
| Handling | Bring reagents to the bottom of each bottle or tube before use. Mix magnetic beads thoroughly before aspiration and use DNase/RNase-free consumables. |
| Intended Use | For research use only. Not for use in diagnostic procedures. |
Data
| QC Item | Specification | Result |
|---|---|---|
| Appearance | Clear liquid with no precipitation, suspended matter, or flocculent; package intact with correct batch number. | Conforms |
| Filling Volume | Each component meets the minimum volume specified in the technical guidelines. | Conforms |
| Negative Concordance Rate | Negative control sample concordance rate (-/-) shall be 4/4 after extraction for Mycoplasma DNA PCR detection. | Conforms |
| Limit of Detection (LOD) | Positive percent agreement (+/+) shall be no less than 23/24 for Mycoplasma DNA PCR detection limit testing. | Conforms |
| Conclusion | Tested according to enterprise standard. | Complies with enterprise standard |
