EcoR I GMP-grade

GMP-grade EcoR I restriction enzyme for mRNA and IVT template preparation.

> 20 U/µL

GAATTC, 5′ cohesive overhangs

32 days at 25 °C

Activity equal to −20 °C control

3 lots

Little lot-to-lot variation

Product overview

EcoR I GMP-grade, GMP-BP-E16, is a GMP-grade restriction endonuclease for DNA digestion workflows in mRNA and IVT process development. Its Type II cleavage mechanism produces 5′ cohesive overhangs. It recognizes the EcoR I site and supports plasmid linearization or preparation of DNA fragments with defined sticky ends.

Available versions

Cat. no.	Product name	Formulation
GMP-BP-E16-2K	EcoR I GMP-grade
GMP-BP-E16-20K	EcoR I GMP-grade
GMP-BP-E16-200K	EcoR I GMP-grade

Features and applications

Features

Specifically recognizes the palindromic sequence GAATTC and cleaves at the G/A site, producing 5′ cohesive overhangs.
GMP-grade EcoR I restriction endonuclease.
Activity: 20 U/μL.
Supplied with 10× EcoR I Reaction Buffer.
Quality control: protein purity ≥95%; free of exogenous DNase, RNase, exonuclease, and endonuclease activity; residual host-cell DNA ≤100 pg/mg; residual host-cell protein <50 ppm; bacterial endotoxin <5 EU/mL.

Applications

Plasmid digestion for linearized DNA fragment preparation.
DNA digestion to generate specific sticky ends.
mRNA and IVT template-preparation workflows.

Components

Component	GMP-BP-E16-2K	GMP-BP-E16-20K	GMP-BP-E16-200K
EcoR I GMP-grade (20 U/μL)	0.1 mL / 2 KU	1 mL / 20 KU	10 mL / 200 KU
10× EcoR I Reaction Buffer	1 mL	5 mL	50 mL

Performance data

1 Digestion of plasmid by varying units of EcoR I GMP-grade

Description: To compare the digestion performance of EcoR I GMP-grade from Biori and Supplier A on 1 μg of plasmid containing a single EcoR I recognition site, using varying enzyme amounts.

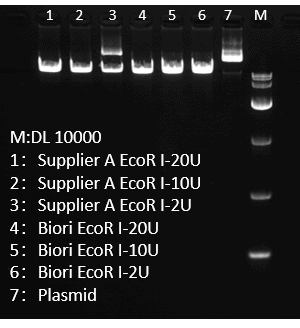

GMP-BP-E16 EcoR I GMP-grade: Figure 1 Digestion of plasmid by EcoR I GMP-grade (Biori vs Supplier A) — **Figure 1** Digestion of plasmid by EcoR I GMP-grade (Biori vs Supplier A)

Conclusion: EcoR I GMP-grade supplied by Biori demonstrated high activity and superior digestion performance compared with Supplier A, particularly at low enzyme concentrations.

2 EcoR I Lot-to-Lot and Accelerated Stability

Description: To evaluate the lot-to-lot stability (three lots) and accelerated stability (stored at 25 °C for 32 days) of Biori EcoR I GMP-grade. The activity of three lots of Biori EcoR I GMP-grade was measured after storage at 25 °C for 32 days.

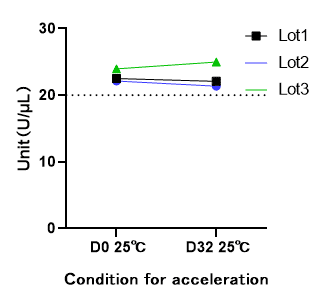

GMP-BP-E16 EcoR I GMP-grade: Figure 2 Lot-to-lot and accelerated stability of EcoR I GMP-grade at 25 °C — **Figure 2** Lot-to-lot and accelerated stability of EcoR I GMP-grade at 25 °C

Conclusion: After 32 days at 25 °C, the activity of all three lots of Biori EcoR I GMP-grade was nearly identical to that at Day 0, with no significant decrease and little lot-to-lot variation.
