BspQ I GMP-grade

GMP-grade BspQ I restriction enzyme for mRNA and IVT template preparation.

10 U/µL

Type IIS, 5′ overhang outside recognition site

28 days at 4 °C

No activity loss

Product overview

BspQ I GMP-grade, GMP-BP-E09, is a GMP-grade type IIS restriction endonuclease. Its Type IIS cleavage mechanism can generate a “scarless” template, ensuring that the IVT product contains no extra nucleotides. It recognizes the BspQ I site and supports plasmid linearization or preparation of DNA fragments with defined sticky ends.

Available versions

Cat. no.	Product name	Formulation
GMP-BP-E09-1K	BspQ I GMP-grade
GMP-BP-E09-10K	BspQ I GMP-grade
GMP-BP-E09-100K	BspQ I GMP-grade

Features and applications

Features

(1) Type IIS restriction endonuclease; recognition sequence:
5' ...GCTCTTC(N)↓...3'
3' ...CGAGAAG(NNNN)↑...5'
The cleavage site is located outside the recognition sequence, generating a 5′ overhang.
Activity: 10 U/μL.
Supplied with 10×BspQ I Reaction Buffer.
Quality control: protein purity ≥95%; free of exogenous DNase, RNase, exonuclease, and endonuclease activity; residual host-cell DNA ≤100 pg/mg; residual host-cell protein <50 ppm; bacterial endotoxin <5 EU/mL.

Applications

Plasmid digestion for linearized DNA fragment preparation.
DNA digestion to generate specific sticky ends.
mRNA and IVT template-preparation workflows.

Components

Component	GMP-BP-E09-1K	GMP-BP-E09-10K	GMP-BP-E09-100K
BspQ I GMP-grade (10 U/μL)	0.1 mL / 1 KU	1 mL / 10 KU	10 mL / 100 KU
10× BspQ I Reaction Buffer	1 mL	5 mL	50 mL

Performance data

1 Plasmid Adaptability and lot-to-lot Stability

Description: Three different plasmids, each containing a single BspQ I GMP-grade recognition site, were tested. Under identical reaction conditions and incubation time, the cleavage activity of three lots of Biori BspQ I GMP-grade was compared with that of Supplier N.

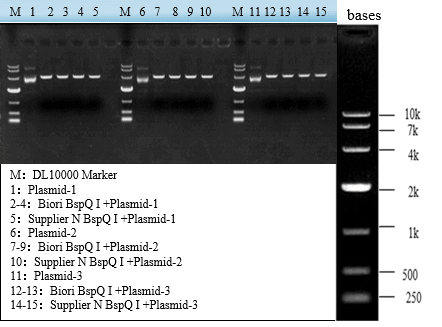

GMP-BP-E09 BspQ I GMP-grade: Figure 1 Comparison of cleavage activity between Biori and Supplier N BspQ I on three different plasmids. — **Figure 1** Comparison of cleavage activity between Biori and Supplier N BspQ I on three different plasmids.

Conclusion: Multiple lots of BspQ I GMP-grade demonstrated consistent cleavage performance across different plasmids, confirming good lot-to-lot stability and broad adaptability to various plasmid templates.

2 4°C storage stability

Description: The activity of Biori BspQ I GMP-grade was measured at 7, 14, 21, and 28 days of storage at 4°C.

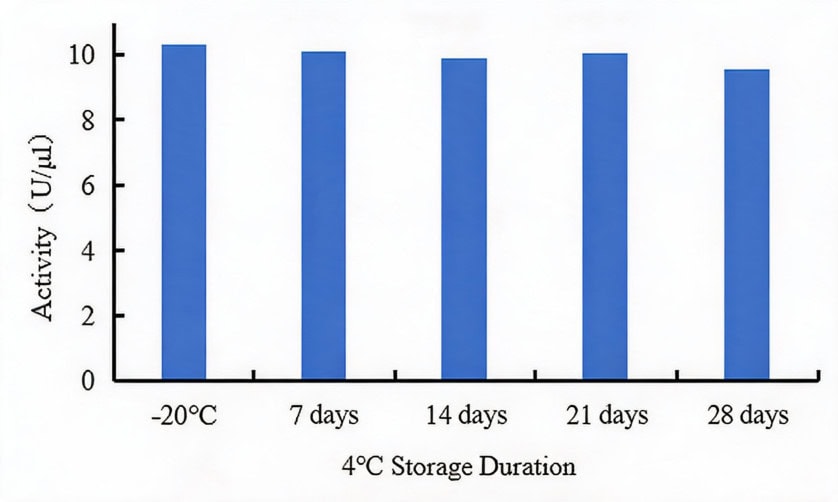

GMP-BP-E09 BspQ I GMP-grade: Figure 2 Activity of Biori BspQ I GMP-grade over 28 days of storage at 4°C. — **Figure 2** Activity of Biori BspQ I GMP-grade over 28 days of storage at 4°C.

Conclusion: Biori BspQ I GMP-grade retained most of its activity throughout the 28-day storage period at 4°C, with only a slight decrease relative to the -20°C sample.

3 BspQ I linearization: downstream IVT comparison (Biori vs Supplier N)

Description: To compare the performance of linearized templates prepared with Biori BspQ I GMP-grade versus Supplier N in downstream in vitro transcription (IVT) applications. Gel electrophoresis analysis of IVT products generated from linearized templates prepared with Biori BspQ I GMP-grade or Supplier N.

GMP-BP-E09 BspQ I GMP-grade: Figure 3 IVT products from linearized templates (Biori vs Supplier N) — **Figure 3** IVT products from linearized templates (Biori vs Supplier N)

Conclusion: Linearized templates prepared with Biori BspQ I GMP-grade, when used with Biori's T7 high-efficiency transcription kit (Cat: BP-01-50), yielded IVT products with high integrity, comparable to those obtained with Supplier N.
